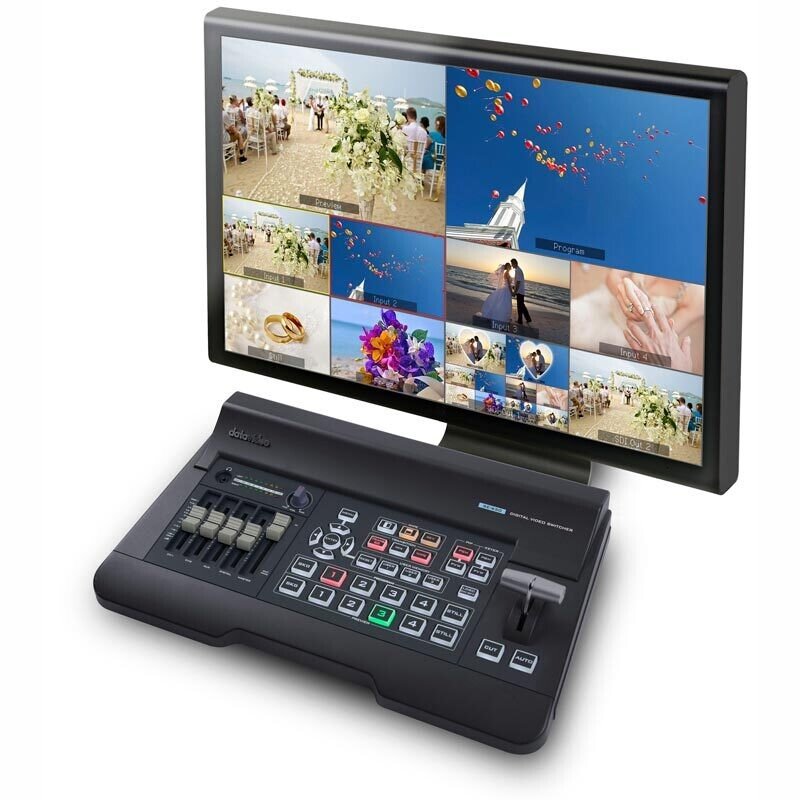

Model Number: SE-650
Video Standard: HD
Video Format
1080i 50/59.94/60Hz
720p 50/59.94/60Hz
Video Processing
SDI: 4:2:2
HDMI: YUV 4:2:2 10 bit, RGB: 4:4:4
Input Routable / Crosspoint
All 4, repeatable
Video Input
2x HD-SDI
2x HDMI
Mix HD & SD Source
—-
Computer Graphic Interface
2 via HDMI
Video Output
2 x HDMI (1 is MV, 1 is Assignable)
1 x HD-SDI (Assignable)
Down-converted Output
—-
Built-in Multi-view Monitoring Out
HDMI & SDI assignable
Analogue Audio Input
1 x Stereo RCA (L/R)
2 x Mono Microphone
Analogue Audio Output
1 x Stereo RCA (L/R)
1 x Stereo headphone (Mini Jack with volume control)
Digital Embedded Audio Support
Input 2 channels, Output 2 channels
Audio Delay Calibration
—-
A+V Switching
Yes
Chromakey
1
Title Creator
—-
USK
2x Keyer support Chromakey/ Linear/ Luma Key
DSK
1x DSK support Lumakey/ Linear key (Key / Fill)
Picture in Picture
1
Logo Insertion
1
Still Store
500
Effects
FTB, Cut, 32 Wipe with border
Transition Preview
Full transitions preview
Sync / Reference In/Out
Built-in Genlock (internal)
Tally Output
1x D-sub 15pin, dual color
PC Remote Control
DVIP (Ethernet)
Built-in Audio Mixer
Yes, 4 channels
Special Features
Free Virtual Set and Stinger transition included
Chassis
Unibody
Dimension (LxWxH)
400 x 250 x 82 mm
Weight
1.9 kg
Power
DC 12V, 29W
Operating Temp. Range
0~40 °C
What’s in the Box
1 x SE-650 product
1 x AD Switch DC 12V with AC Cord
